With the development of low power long range RF technology, especially LoRa technology launched by Semtech becomes more and more mature, Winext Technology have launched LoRa tester AN-106 based on LoRa module. AN-106 LoRa tester is with LCD screen and connect with gateway via OTAA network joining. It can test the UPlink and DOWNlink packet loss rate and meanwhile users can get RSSI and SNR of gateway transmission. Users can also turn on the GPS to display the latitude and longitude coordinates of the device, and check the LoRoWAN CLASS type and the firmware version number of the LoRa tester.

  Features:

 ² Support LoRa wireless communication , support EU868/US915/AS923;

   ² Support GPS locating with the accuracy of within 5M;

 ² With built-in lithium battery can support the system for 36 hours;

   ² With LCD screen, which can support text interface display;

   ²   Full plastic shell structure design;

   ² Wide working temperature range, to achieve industrial -20℃~+70℃;

   ² Support real-time communication with gateway, can get RSSI and SNR of gateway                   transmission;

  ² Support statistics of packet loss rate of communication between gateway and nodes.

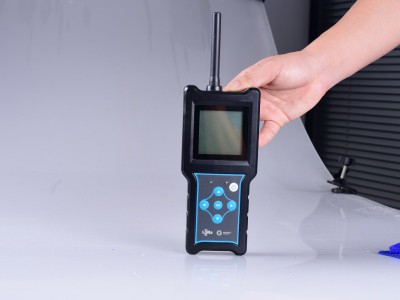

Images:

Technical parameters:

Key instruction:

-There are total 5 function keys and a ON/OFF key;

-Function keys are:left key, right key, up key, down key, OK key, ON/OFF key

-Right key/left key: return the function menu at the previous level

  Up key/Down key: choose up and down;

  The ">" at the beginning, displays the chosen function menu

-OK key: to enter the function menu, perform the function of the function menu

Attention:

1) The LoRa tester should be turn off in the absence of use for a long time;

2) Pls make sure that the frequency parameters should be consistent with the gateway frequency  parameters, otherwise, it can not join network and can not communicate with the gateway.
