AP4050DN-EAP4050DN-E Access Point
Appearance

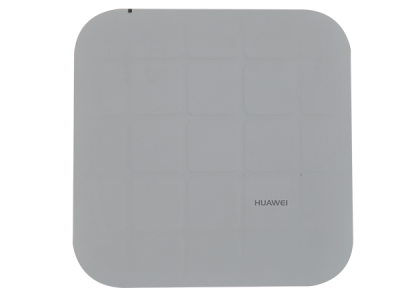

AP4050DN-E Access Point
Huawei AP4050DN-E is an IoT-type of wireless access point that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams. The AP4050DN-E provides a rate of up to 1.267 Gbit/s and is applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments.
- IoT module slots for flexible expansion of IoT functions
- Built-in Bluetooth to implement precise positioning with eSight
- PoE OUT, saving costs in switch ports by 50%
- Cloud-based AP management using the Agile Controller-Cloud Manager
|
Specifications |
AP4050DN-E |
|
Dimensions (H x W x D) |
53 mm x 220 mm x 220 mm |
|
Power Input |
12V DC ±10% PoE power supply: In compliance with IEEE 802.3at |
|
Maximum Power Consumption |
16.0W (excluding the output power of the USB port, IoT card, or PoE_OUT port) Note: The actual maximum power consumption depends on local laws and regulations |
|
Operating Temperature |
–10°C to 50°C |
|
Antenna Type |
Built-in omnidirectional dual-band antenna |
|
Maximum Number of Concurrent Users |
≤ 256 |
|
Maximum Transmit Power |
2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power) Notes: The actual transmit power depends on local laws and regulations. You can adjust the transmit power from the maximum transmit power to 1 dBm, in steps of 1 dB |
|
MIMO: Spatial Streams |
2 x 2:2 MU/SU-MIMO |
|
Radio Protocols |
Compliance with IEEE 802.11a/b/g/n/ac/ac wave 2 |
|
Maximum Rate |
1.267 Gbit/s |
